9.1 Objective
ACAI should not depend permanently on a single AI provider.

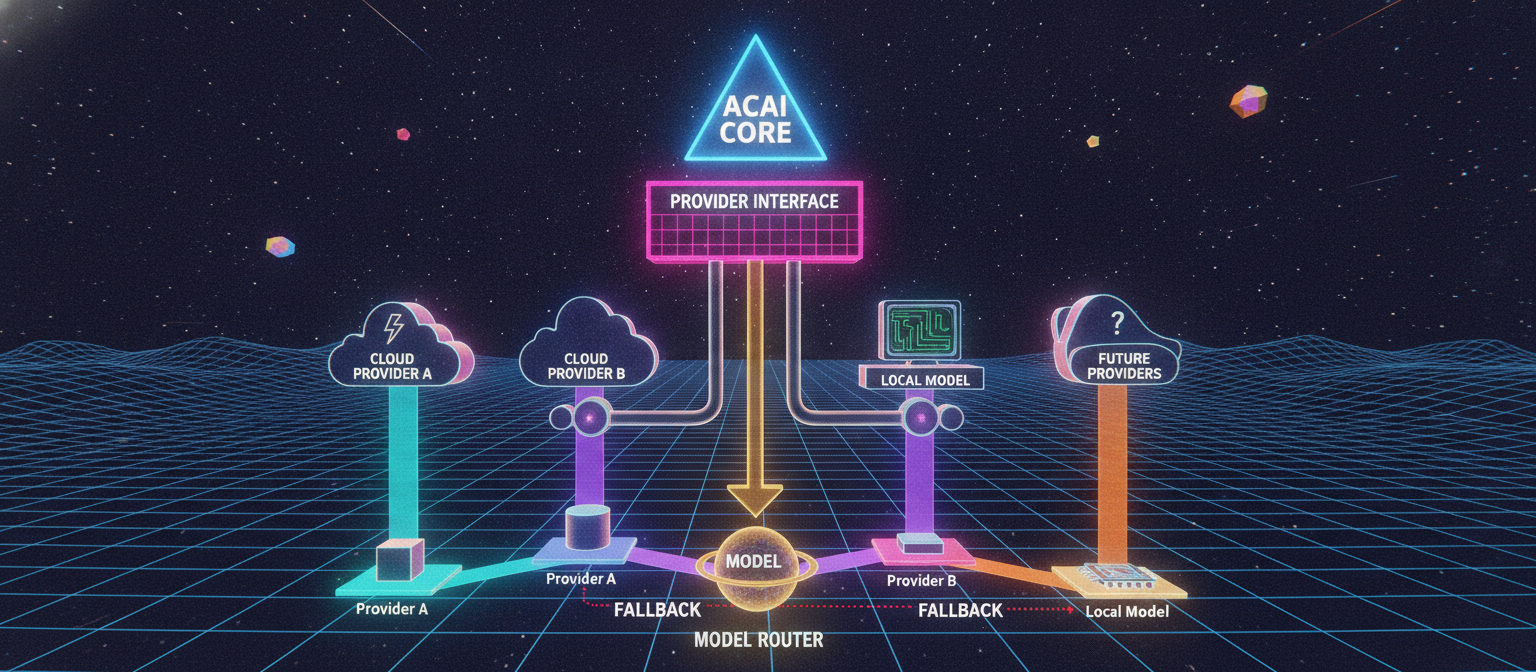

A robust architecture should separate:
ACAI Core
↓
Provider Interface
↓
Provider Adapters
├── Cloud Provider A
├── Cloud Provider B
├── Local Model
└── Future Providers
The important design principle is:
The core system should know how to request an AI capability, not how every individual provider implements that capability.
9.2 Why a Provider Abstraction Is Necessary
Without an abstraction, the application can become:
Planner
↓
OpenAI-specific code
↓
OpenAI API
Then changing providers requires modifying many parts of the system.
A better design is:
Planner
↓
Model Router
↓
Provider Interface
↓
Selected Provider
Now the planner does not need to know whether the model is:
Cloud
Local
Open-source
Hosted
9.3 Provider Interface
Create:
app/providers/base.py
Example:
from abc import ABC, abstractmethod
class AIProvider(ABC):
@abstractmethod
async def generate(
self,
prompt: str,
**kwargs,
) -> str:
raise NotImplementedError
@abstractmethod
async def health_check(
self,
) -> bool:
raise NotImplementedError
Every provider must implement the same basic contract.
9.4 Provider Adapter
A provider adapter converts ACAI's internal request into the provider's API format.
Architecture:
ACAI Request
│
▼
Provider Interface
│
▼
Provider Adapter
│
▼
External API
This prevents provider-specific implementation details from spreading throughout the application.
9.5 Mock Provider
Before connecting real services, create a mock provider.
Create:
app/providers/mock.py
from app.providers.base import AIProvider
class MockProvider(AIProvider):
async def generate(
self,
prompt: str,
**kwargs,
) -> str:
return (
"Mock response generated "
"for: "
f"{prompt}"
)
async def health_check(
self,
) -> bool:
return True
This is extremely useful for development because the application can be tested without spending API credits.
9.6 Provider Registry
Create:
app/providers/registry.py
from app.providers.base import AIProvider
class ProviderRegistry:
def __init__(self):
self.providers: dict[
str,
AIProvider
] = {}
def register(
self,
name: str,
provider: AIProvider,
) -> None:
self.providers[name] = provider
def get(
self,
name: str,
) -> AIProvider | None:
return self.providers.get(name)
def names(self) -> list[str]:
return list(
self.providers.keys()
)
Example:
registry.register(
"mock",
MockProvider(),
)
9.7 Model Router
The model router selects a provider.
Conceptually:
REQUEST
│
▼
MODEL ROUTER
│
┌────────────┼────────────┐
▼ ▼ ▼
Provider A Provider B Local Model
│ │ │
└────────────┼────────────┘
▼
RESULT
The router can consider:
Task type
Model capability
Latency
Cost
Availability
User configuration
Provider health
9.8 Routing Policy
Create:
app/services/model_router.py
class ModelRouter:
def __init__(
self,
registry,
):
self.registry = registry
async def generate(
self,
prompt: str,
provider_name: str = "mock",
**kwargs,
) -> str:
provider = (
self.registry.get(
provider_name
)
)
if provider is None:
raise ValueError(
f"Unknown provider: "
f"{provider_name}"
)
return await provider.generate(
prompt,
**kwargs,
)
This provides one internal interface:
router.generate(...)
regardless of the underlying provider.
9.9 Provider Health
Before selecting a provider, ACAI can check its health.
Conceptually:
Provider A
│
▼
Healthy?
┌─┴─┐
YES NO
│ │
▼ ▼
Use Fallback
However, repeatedly calling a provider's health endpoint before every request can add latency.
A production system should generally maintain cached health information rather than performing a fresh health check for every generation.
9.10 Provider Status
A provider can have:
healthy
degraded
unavailable
unknown
Example:
class ProviderStatus:
HEALTHY = "healthy"
DEGRADED = "degraded"
UNAVAILABLE = "unavailable"
UNKNOWN = "unknown"
9.11 Fallback Architecture
Suppose the preferred provider is:
Provider A
and it fails.
The router can attempt:
Provider A
↓
Failure
↓
Provider B
↓
Failure
↓
Local Model
Conceptually:
REQUEST
│
▼
Provider A
│
┌─────┴─────┐
▼ ▼
SUCCESS FAILURE
│ │
▼ ▼
RESULT Provider B
│
┌─────┴─────┐
▼ ▼
SUCCESS FAILURE
│ │
▼ ▼
RESULT Local Model
9.12 Fallback Must Be Controlled
Fallback should not mean:
Try providers forever.
It should have:
Maximum attempts
Timeout
Allowed providers
Error classification
Logging
Termination condition
Example:
MAX_PROVIDER_ATTEMPTS = 3
9.13 Provider Error Classification
Not every failure should trigger fallback.
Examples:
Authentication failure
Invalid request
Rate limit
Timeout
Temporary server error
Network error
A policy can classify them as:
Transient
Permanent
For example:
Timeout
→ potentially transient
→ fallback may be appropriate
Invalid request
→ permanent
→ fallback may not solve the underlying problem
9.14 Provider Result Object
Instead of returning only a string, create a structured result.
from dataclasses import dataclass
@dataclass
class ProviderResult:
text: str
provider: str
model: str | None = None
latency_ms: float | None = None
success: bool = True
error: str | None = None
Now ACAI can record how the result was generated.
9.15 Measuring Latency
Use a timer:
import time
start = time.perf_counter()
result = await provider.generate(
prompt
)
elapsed = (
time.perf_counter()
- start
)
latency_ms = elapsed * 1000
This provides measurable provider performance.
9.16 Cost Awareness
Different providers can have different pricing.
The router can eventually maintain metadata:
provider_info = {
"provider_a": {
"cost_class": "high",
"latency_class": "low",
},
"provider_b": {
"cost_class": "low",
"latency_class": "medium",
},
"local": {
"cost_class": "compute_only",
"latency_class": "variable",
},
}
The actual prices should come from current provider pricing documentation rather than being hardcoded as permanent assumptions.
9.17 Task-Aware Routing
Not every task requires the same model.
For example:
Simple classification
→ Smaller model
Complex reasoning
→ More capable model
Local/private processing
→ Local model
High-volume inexpensive task
→ Lower-cost provider
The architecture becomes:
TASK
│
▼
TASK CLASSIFIER
│
┌────────┼────────┐
▼ ▼ ▼
Simple Complex Private
│ │ │
▼ ▼ ▼
Model A Model B Local
9.18 Router Policy
A basic policy might be:
ROUTING_POLICY = {
"simple": [
"provider_a",
"provider_b",
],
"complex": [
"provider_b",
"provider_a",
],
"private": [
"local",
],
}
The important point is that the routing policy is configuration rather than hardcoded throughout the application.
9.19 Fallback Router
A simple implementation:
class FallbackRouter:
def __init__(
self,
registry,
):
self.registry = registry
async def generate(
self,
prompt: str,
providers: list[str],
**kwargs,
):
errors = []
for name in providers:
provider = (
self.registry.get(name)
)
if provider is None:
errors.append(
f"{name}: not registered"
)
continue
try:
result = (
await provider.generate(
prompt,
**kwargs,
)
)
return result
except Exception as exc:
errors.append(
f"{name}: {exc}"
)
raise RuntimeError(
"All providers failed: "
+ "; ".join(errors)
)
This is a prototype and should later be enhanced with explicit timeout and error classification.
9.20 Timeout-Aware Provider Calls
Use:
import asyncio
result = await asyncio.wait_for(
provider.generate(
prompt,
**kwargs,
),
timeout=60,
)
Then a provider that exceeds the limit does not block the complete workflow indefinitely.
9.21 Complete Provider Pipeline
The resulting architecture is:
USER REQUEST
│
▼
PLANNER
│
▼
TASK TYPE
│
▼
MODEL ROUTER
│
┌─────────┼─────────┐
▼ ▼ ▼
Provider A Provider B Local
│ │ │
└─────────┼─────────┘
▼
RESULT
│
▼
VERIFICATION
│
┌────┴────┐
▼ ▼
PASS REVISE
│ │
▼ ▼
FINAL RETRY
9.22 Local Model Integration
A local provider should follow exactly the same interface.
class LocalProvider(AIProvider):
async def generate(
self,
prompt: str,
**kwargs,
) -> str:
# Connect to the configured
# local model server here.
return "Local model response"
async def health_check(
self,
) -> bool:
return True
The important architectural property is:
ACAI Core
↓
AIProvider
↓
LocalProvider
rather than:
ACAI Core
↓
Local-model-specific implementation
everywhere.
9.23 Environment-Based Provider Selection
Configuration:
ACAI_DEFAULT_PROVIDER=mock
ACAI_FALLBACK_PROVIDERS=mock
For development:
mock
For a real deployment:
provider_a
provider_b
local
can be configured according to the actual providers and credentials available.
9.24 API Key Management
Provider credentials must be loaded from environment variables or a secure secret manager.
Example:
PROVIDER_A_API_KEY=...
PROVIDER_B_API_KEY=...
Do not put keys directly into:
Python source
Git repository
Frontend JavaScript
Public documentation
Screenshots
The backend should be the component that communicates with privileged provider APIs.
9.25 Frontend Security
A browser application should never receive a private provider API key simply because the frontend needs to generate an AI response.
Instead:
Browser
↓
ACAI Backend
↓
Provider API
not:
Browser
↓
Private API Key
↓
Provider API
9.26 Provider Usage Logging
Each generation should ideally record:
request_id
provider
model
task_type
latency
success
error
Example:
logger.info(
"AI generation completed",
extra={
"request_id": request_id,
"provider": provider_name,
"model": model_name,
"latency_ms": latency_ms,
},
)
This enables later analysis.
9.27 Provider Metrics
Useful metrics include:
Requests
Success rate
Failure rate
Average latency
P95 latency
Timeout count
Rate-limit count
Fallback count
Example:
Provider A
Success: 98%
Fallback: 2%
Average latency: measured from production
These numbers must come from actual measurements, not assumptions.
9.28 Fallback Metrics
One particularly important metric is:
fallback_rate
If:
1000 requests
50 required fallback
then:
fallback_rate = 5%
A high fallback rate may indicate:
Provider instability
Bad timeout configuration
Rate limiting
Incorrect routing
Credential problems
Network issues
9.29 Testing the Mock Provider
Create:
tests/test_provider.py
import pytest
from app.providers.mock import (
MockProvider,
)
@pytest.mark.asyncio
async def test_mock_provider():
provider = MockProvider()
result = await provider.generate(
"Hello"
)
assert "Hello" in result
Health test:
@pytest.mark.asyncio
async def test_mock_health():
provider = MockProvider()
assert (
await provider.health_check()
is True
)
9.30 Testing Fallback
Create a failing provider:
class FailingProvider:
async def generate(
self,
prompt,
**kwargs,
):
raise RuntimeError(
"Provider unavailable"
)
Then configure:
Failing Provider
↓
Mock Provider
Expected:
First provider
→ FAIL
Fallback provider
→ SUCCESS
9.31 Fallback Test
Conceptually:
@pytest.mark.asyncio
async def test_fallback():
registry = ProviderRegistry()
registry.register(
"failing",
FailingProvider(),
)
registry.register(
"mock",
MockProvider(),
)
router = FallbackRouter(
registry
)
result = await router.generate(
prompt="hello",
providers=[
"failing",
"mock",
],
)
assert "hello" in result
9.32 Testing All Providers
The system should eventually have tests for:
Provider registration
Unknown provider
Successful generation
Timeout
Transient failure
Permanent failure
Fallback
All providers failing
Health state
Logging
Metrics
9.33 Provider Independence
The most important architectural outcome of Chapter 9 is:
ACAI CORE
│
AIProvider Interface
│
┌─────────┼─────────┐
▼ ▼ ▼
Provider A Provider B Local
This means adding another provider should require primarily:
New Adapter
+
Configuration
+
Tests
rather than rewriting the entire application.
9.34 Complete ACAI Architecture
After Chapter 9:
USER
│
▼
API GATEWAY
│
┌───────────┴───────────┐
▼ ▼
RATE LIMITER REQUEST ID
│ │
└───────────┬───────────┘
▼
ORCHESTRATOR
│
┌──────────────────┼──────────────────┐
▼ ▼ ▼
PLANNER MEMORY RETRIEVAL
│ │ │
│ ▼ │
│ DATABASE │
│ │
└──────────────────┬──────────────────┘
▼
WORKFLOW ENGINE
│
▼
MODEL ROUTER
│
┌──────────────┼──────────────┐
▼ ▼ ▼
Provider A Provider B Local
│ │ │
└──────────────┼──────────────┘
▼
GENERATION
│
▼
VERIFICATION
│
┌─────┴─────┐
▼ ▼
PASS REVISE
│ │
▼ ▼
RESULT RETRY
│
┌───────────┼───────────┐
▼ ▼ ▼
CACHE LOGS METRICS
9.35 What ACAI Can Now Demonstrate
The architecture can now demonstrate a realistic modular AI pipeline:
User
↓
Request Validation
↓
Planning
↓
Workflow Creation
↓
Memory / Retrieval
↓
Task Routing
↓
Provider Selection
↓
AI Generation
↓
Fallback if appropriate
↓
Verification
↓
Result
↓
Persistent Logging
This is a meaningful engineering architecture.
It is not, by itself, proof of AGI or human-level intelligence.
9.36 Chapter 9 Success Criteria
Chapter 9 is complete when:
[✓] Provider interface exists
[✓] Mock provider works
[✓] Provider registry works
[✓] Model router exists
[✓] Fallback router exists
[✓] Timeout handling exists
[✓] Provider health is defined
[✓] Provider errors are classified
[✓] API keys are externalized
[✓] Provider usage is logged
[✓] Provider metrics are defined
[✓] Fallback is tested
[✓] Local-provider architecture is supported
9.37 Next Chapter
The system now has:
Planning
Retrieval
Memory
Routing
Verification
Workflow
Persistence
Infrastructure
Multi-provider execution
Fallback
The next major problem is evaluation.
An AI system cannot be considered reliable merely because:
API returns 200
or:
Model generated text
We need to measure whether the system actually performs its intended tasks correctly.
Therefore the next chapter is:
Chapter 10 — Evaluation, Benchmarking, Quality Measurement, and Research Validation
It will cover:
Evaluation datasets
Test cases
Task success metrics
Accuracy
Factuality
Latency
Reliability
Regression testing
Human evaluation
Automated evaluation
Benchmark design
A/B testing
Failure analysis
Reproducibility
Research reporting
The architecture will move from:
"It works."
to:
"Here is what it does,
how well it does it,
where it fails,
and how we measured it."
End of Chapter 9
Comments
Post a Comment
