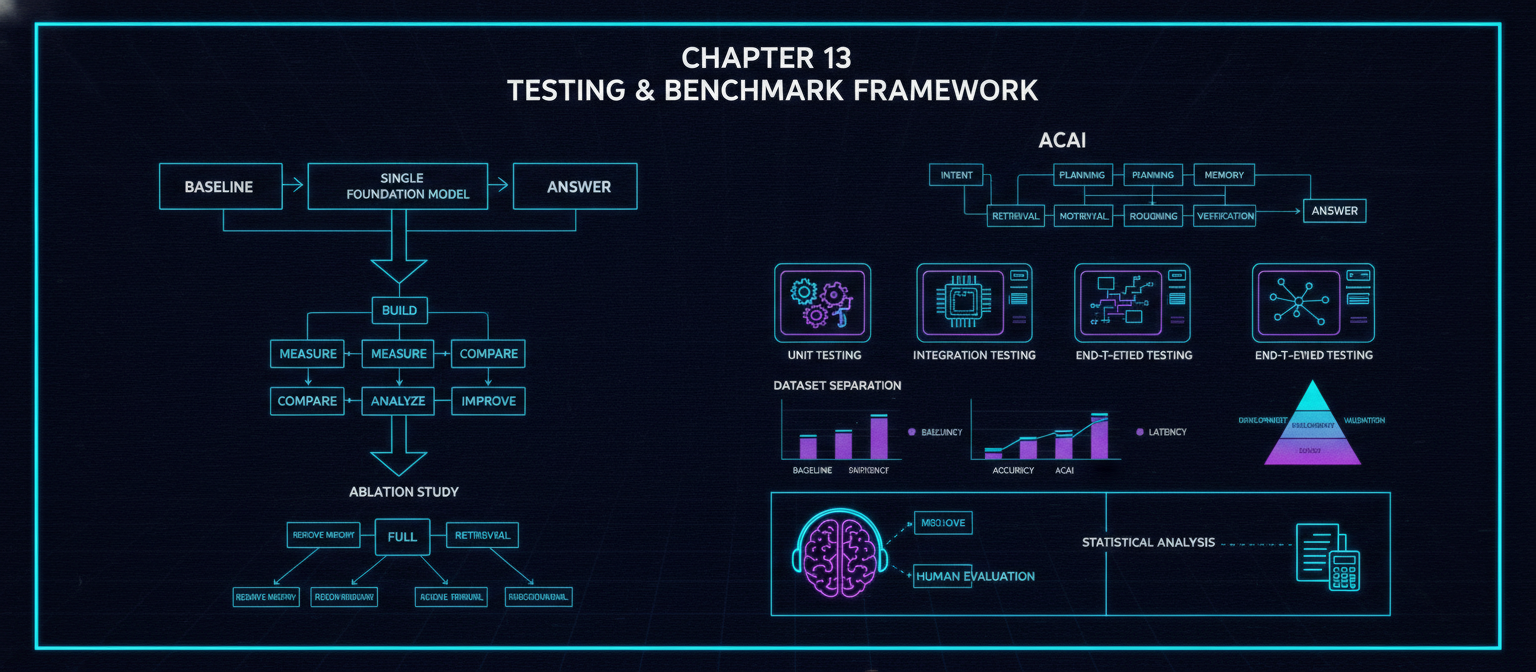

Chapter 13 — Testing & Benchmark Framework



Chapter 13 — Testing & Benchmark Framework, covering the actual experimental methodology needed to determine whether ACAI performs better than a conventional single-model baseline.

• Unit testing
• Integration testing
• End-to-end testing
• Regression testing
• Load testing
• Security testing
• Baseline vs ACAI comparison
• Ablation studies
• Human evaluation

13.1 Introduction

A sophisticated AI architecture cannot be considered successful merely because the software runs.

The central research question is:

Does the additional ACAI architecture measurably improve performance compared with a simpler baseline?

Chapter 13 defines a practical framework for answering that question.

The testing system should evaluate not only answer accuracy, but also retrieval quality, reasoning performance, latency, cost, reliability, and failure behavior.

The most important principle is:

Build
  ↓
Measure
  ↓
Compare
  ↓
Analyze
  ↓
Improve
  ↓
Measure Again

---

13.2 Baseline vs ACAI

The first requirement is a baseline.

Baseline

User
 ↓
Single Foundation Model
 ↓
Answer

ACAI

User
 ↓
Intent
 ↓
Planning
 ↓
Memory
 ↓
Retrieval
 ↓
Model Routing
 ↓
Reasoning
 ↓
Verification
 ↓
Answer

The two systems should be evaluated on the same task set.

Otherwise, the comparison may not be meaningful.

---

13.3 Research Hypothesis

A testable hypothesis could be:

ACAI will achieve higher task-completion and answer-quality scores than the baseline on selected complex tasks, while introducing additional latency and computational overhead.

This is a hypothesis.

It should not be presented as a result until experiments demonstrate it.

---

13.4 Benchmark Dataset

The benchmark should represent the intended use cases.

Example categories:

General Question Answering
Programming
Mathematics
Research
Long-Context Analysis
Document Understanding
Planning
Multilingual Tasks
Structured Output
Tool Use

A balanced benchmark prevents the system from appearing strong simply because it was tested on its easiest capability.

---

13.5 Dataset Structure

Each test case can contain:

{
  "id": "task_001",
  "category": "programming",
  "prompt": "...",
  "expected_behavior": "...",
  "reference_answer": "...",
  "difficulty": "medium"
}

Not every task requires a single reference answer.

For open-ended tasks, evaluation can instead use a rubric.

---

13.6 Dataset Separation

The evaluation dataset should be separated into different subsets.

Dataset
   │
   ├── Development
   ├── Validation
   └── Test

The final test set should not repeatedly be used during development.

Otherwise, developers may unintentionally optimize the system specifically for those examples.

---

13.7 Unit Testing

Every individual component should have tests.

Examples:

Planner
  ↓
Input → Expected Plan

Retriever
  ↓
Query → Expected Relevant Documents

Router
  ↓
Task → Expected Model Class

Memory
  ↓
Store → Retrieve

Verifier
  ↓
Claim → Verification Result

Unit tests make component-level failures easier to identify.

---

13.8 Integration Testing

Integration testing verifies whether multiple components work together.

Example:

User Request
     ↓
Planner
     ↓
Retriever
     ↓
Model
     ↓
Verifier
     ↓
Response

The objective is to detect failures that do not appear when components are tested independently.

---

13.9 End-to-End Testing

End-to-end testing evaluates the complete application.

User
 ↓
Frontend
 ↓
API
 ↓
Orchestrator
 ↓
All Required Services
 ↓
Response

A complete test might verify:

Request submitted
      ↓
Correct plan generated
      ↓
Correct documents retrieved
      ↓
Correct model selected
      ↓
Response generated
      ↓
Verification completed
      ↓
Response delivered

---

13.10 Retrieval Benchmark

The retrieval subsystem requires independent testing.

Useful metrics include:

Precision

Of the retrieved documents, how many are relevant?

Recall

Of the relevant available documents, how many were retrieved?

Ranking Quality

Are the most useful documents appearing near the top?

Example:

Query

↓

Top 5 Results

1. Relevant ✓
2. Relevant ✓
3. Relevant ✓
4. Irrelevant ✗
5. Irrelevant ✗

This can be evaluated systematically using a labeled dataset.

---

13.11 Context Quality

Retrieval alone does not guarantee good context.

The benchmark should evaluate:

Retrieved Documents
        ↓
Context Builder
        ↓
Final Context

Questions:

• Was important information preserved?
• Was irrelevant information removed?
• Were sources correctly associated?
• Was the context too large?
• Were conflicting sources identified?

---

13.12 Planning Benchmark

The planner can be evaluated using task decomposition.

Example:

Complex Task
     ↓
Expected Subtasks
     ↓
Generated Subtasks

Metrics can include:

• Task coverage
• Dependency correctness
• Redundant-task rate
• Invalid-task rate
• Completion rate

---

13.13 Model Routing Benchmark

The router should be evaluated separately.

Example:

Task
 ↓
Router
 ↓
Selected Model

Then compare:

Selected Model Performance
            vs
Best Available Model Performance

Useful metrics include:

• Routing accuracy
• Task success
• Average latency
• Cost
• Fallback rate

---

13.14 Memory Benchmark

Memory should be tested for both retrieval and correctness.

Example:

Conversation 1
     ↓
Store Memory
     ↓
Conversation 2
     ↓
Retrieve Memory

The test should determine:

• Was the correct memory retrieved?
• Was irrelevant memory ignored?
• Was outdated information handled correctly?
• Did memory improve task completion?

---

13.15 Reasoning Evaluation

Reasoning quality should be measured through the final task outcome rather than assuming that longer hidden reasoning means better reasoning.

Possible benchmark categories:

Multi-Step Mathematics
Logical Problems
Programming Tasks
Planning Tasks
Research Synthesis

The evaluation should focus on correctness and task completion.

---

13.16 Verification Benchmark

Create examples containing known errors.

Example:

Draft Answer
     ↓
Contains Known Error
     ↓
Verification System
     ↓
Should Detect Error

Possible metrics:

Detection Rate

How often are known errors detected?

False Positive Rate

How often does the verifier incorrectly reject a correct answer?

Correction Rate

How often is a detected error actually corrected?

---

13.17 Confidence Calibration

A confidence score is useful only if it corresponds reasonably well with actual correctness.

Example:

Confidence: 90%
Actual correctness: 90%

would represent good calibration.

But:

Confidence: 95%
Actual correctness: 60%

would indicate overconfidence.

Therefore, confidence should be evaluated statistically rather than simply displayed to users.

---

13.18 Latency Benchmark

Measure the time required for each stage.

Example:

Intent        50 ms
Planning      100 ms
Retrieval     250 ms
Model         1,800 ms
Verification  300 ms
---------------------
Total         2,500 ms

This allows engineers to identify the largest bottleneck.

---

13.19 Cost Benchmark

For cloud-based systems, cost should be measured per request or per completed task.

Example:

Baseline
Cost / Task = X

ACAI
Cost / Task = Y

A more complex architecture is not automatically better if its performance improvement is too small relative to its resource cost.

---

13.20 Load Testing

The system should be tested under increasing concurrency.

10 Users
 ↓
50 Users
 ↓
100 Users
 ↓
500 Users
 ↓
1,000 Users

Measure:

• Response latency
• Error rate
• Throughput
• CPU utilization
• GPU utilization
• Memory utilization
• Queue depth

The actual maximum capacity should come from experiments.

---

13.21 Stress Testing

Stress testing intentionally pushes the system beyond expected normal load.

Example:

Normal Load
      ↓
High Load
      ↓
Extreme Load
      ↓
Failure
      ↓
Recovery

The objective is to understand how the system fails and whether it recovers safely.

---

13.22 Failure Testing

The system should deliberately simulate failures.

Examples:

Model Offline
Database Offline
Vector Store Offline
Network Failure
Worker Crash
Invalid Document
Timeout
Rate Limit

Expected behavior:

Failure
 ↓
Detection
 ↓
Fallback / Retry
 ↓
Graceful Response

---

13.23 Regression Testing

Every major update should run the previous benchmark suite.

Example:

Version 1.0
   ↓
Benchmark
   ↓
Version 1.1
   ↓
Same Benchmark

If a new feature improves programming but significantly damages document retrieval, the regression test should reveal it.

---

13.24 Ablation Study

Ablation testing is one of the most important experiments for ACAI.

Start with:

Full ACAI

Then remove components individually.

ACAI
 │
 ├── Remove Memory
 ├── Remove Retrieval
 ├── Remove Planner
 ├── Remove Router
 └── Remove Verification

Compare the results.

This determines which components actually contribute to performance.

---

13.25 Example Ablation Table

Configuration	Accuracy	Latency	Cost
Baseline	Measure	Measure	Measure
+ Planning	Measure	Measure	Measure
+ Retrieval	Measure	Measure	Measure
+ Memory	Measure	Measure	Measure
+ Routing	Measure	Measure	Measure
+ Verification	Measure	Measure	Measure
Full ACAI	Measure	Measure	Measure

The values must come from real experiments.

They should never be fabricated.

---

13.26 Human Evaluation

Some tasks cannot be evaluated completely by automated metrics.

Human reviewers can score responses using a standardized rubric.

Example:

Criterion	1	3	5
Correctness	Poor	Moderate	Excellent
Relevance	Poor	Moderate	Excellent
Clarity	Poor	Moderate	Excellent
Completeness	Poor	Moderate	Excellent
Evidence	Poor	Moderate	Excellent

Multiple evaluators can independently score the same samples.

---

13.27 Blind Evaluation

When possible, reviewers should not know whether a response came from:

Baseline

or

ACAI

This reduces evaluation bias.

A practical setup:

Response A
Response B

Reviewer
   ↓
Scores Both

The system identity can be revealed only after scoring.

---

13.28 Statistical Analysis

If the dataset is sufficiently large, researchers can apply statistical analysis to determine whether observed differences are likely meaningful.

Report:

• Sample size
• Mean
• Median
• Variance
• Confidence intervals where appropriate
• Statistical tests where appropriate
• Effect size

A small numerical improvement should not automatically be described as a meaningful improvement.

---

13.29 Reproducibility

A serious research evaluation should record:

Model Version
Dataset Version
Prompt Version
Software Version
Hardware
Configuration
Random Seeds
Evaluation Method

This allows another researcher to reproduce the experiment.

---

13.30 Benchmark Report

A final benchmark report should contain:

1. Objective

2. Research Question

3. Dataset

4. Baseline

5. ACAI Configuration

6. Hardware

7. Metrics

8. Experimental Procedure

9. Results

10. Ablation Study

11. Failure Analysis

12. Limitations

13. Conclusion

---

13.31 What Would Constitute Strong Evidence?

A strong result would look like:

Baseline
     │
     ├── Accuracy
     ├── Latency
     └── Cost
             │
             ▼
        Controlled Test
             │
             ▼
ACAI
     │
     ├── Accuracy
     ├── Latency
     └── Cost

Then the improvement should be:

• Repeated across multiple task categories
• Statistically or practically meaningful
• Reproducible
• Not limited to one hand-picked example
• Reported together with failure cases

---

13.32 Negative Results

Negative results are scientifically valuable.

For example:

ACAI improves:

Planning        ↑
Retrieval       ↑

But increases:

Latency         ↑
Cost            ↑

That result should still be published honestly.

It may indicate that the architecture is useful only for certain workloads.

---

13.33 Practical Testing Pipeline

Create Dataset
      ↓
Define Baseline
      ↓
Run Baseline
      ↓
Run ACAI
      ↓
Compare
      ↓
Ablation Study
      ↓
Failure Analysis
      ↓
Human Evaluation
      ↓
Statistical Analysis
      ↓
Final Report

---

13.34 Final Benchmark Architecture

                         TEST DATASET
                              │
                              ▼
                     ┌────────────────┐
                     │ Test Controller│
                     └───────┬────────┘
                             │
                  ┌──────────┴──────────┐
                  ▼                     ▼
             BASELINE                  ACAI
                  │                     │
                  ▼                     ▼
             Responses              Responses
                  │                     │
                  └──────────┬──────────┘
                             ▼
                    Automated Metrics
                             │
                             ▼
                     Human Evaluation
                             │
                             ▼
                     Statistical Analysis
                             │
                             ▼
                       Final Results

---

13.35 Chapter Summary

A functioning prototype alone cannot demonstrate that ACAI is better than a conventional language-model system.

The testing framework therefore establishes a controlled methodology based on:

• Baseline comparison
• Component-level testing
• Integration testing
• End-to-end testing
• Retrieval evaluation
• Planning evaluation
• Memory evaluation
• Verification evaluation
• Latency and cost measurement
• Load and stress testing
• Ablation studies
• Human evaluation
• Regression testing
• Reproducibility

The central rule is simple:

Do not claim improvement until the benchmark demonstrates improvement.

This turns ACAI from a collection of architectural ideas into a testable research program.

---

End of Chapter 13

Stay tuned for Chapter: 14 Complete End-to-End System Architecture.

🚀 Connect with Black Shadow Team Across the Web! 🌐

We are actively sharing our latest cybersecurity research, AI safety insights, ethical hacking content, and tech updates across multiple platforms. Follow and subscribe to stay updated with our official channels:

📝 Articles & Research Papers:

Medium: https://medium.com/@blackshadowteam.net

Substack: https://blackshadowteam.substack.com

Dev.to: https://dev.to/black_shadow_team

HackerNoon: https://hackernoon.com/u/black-shadow-team

Hashnode: https://hashnode.com/@black-shadow-team

Blogspot: https://black-shadow-team.blogspot.com/

💻 Code & Open Source:

GitHub: https://github.com/blackshadowteamnet-netizen

WordPress: https://profiles.wordpress.org/blackshadowteam

📱 Social Media & Updates:

X (Twitter): https://x.com/BlackShadoTeam

Facebook Page: https://www.facebook.com/profile.php?id=61591268330812

Facebook Profile: https://www.facebook.com/profile.php?id=100090580510673

Instagram: https://www.instagram.com/black_shadow_team_x/

Threads: https://www.threads.net/@blacky_mahin_x

Bluesky: https://bsky.app/profile/black-shadow-team.bsky.social

💬 Community & Discussions:

Reddit: https://www.reddit.com/user/blackshadowteamoffic/

Quora (Bangla): https://bn.quora.com/profile/Black-Shadow-Team

Mix: https://mix.com/black_shadow_team

Discord: https://discord.com/channels/1518981404074184725/1518981404632023143

🎵 Short Videos & Audio:

TikTok: https://www.tiktok.com/@blackshadowteam.net

SoundCloud: https://on.soundcloud.com/VBWtOYsgktkw37kAza

Goodreads: https://www.goodreads.com/user/show/203582586-black-shadow-team-team

Stay connected and join our growing cybersecurity community! 🛡️✨
